藍寶石晶體拋光用GC 400#綠碳化硅研磨粉

發布時間:2024-11-07 06:08:18瀏覽次數:


藍寶石晶體拋光用GC 400#綠碳化硅研磨粉


        綠碳化硅研磨粉用于光學晶體、光學玻璃、人造板巖、合金材料的研磨去除。在半導體行業,GC 400#綠碳化硅研磨粉可以用來研磨藍寶石晶體,部分代替碳化硼,降低研磨成本。


  • PRODUCT/產品: Green Silicon Carbide JIS400#/綠碳化硅400#

  • Physical Index/物理參數:
Hardness: HV/維氏硬度 3280-3400kg/mm2
Hardness: Mohs/莫氏硬度 9.4-9.5
Specific Gravity/比重 3.2 g/cm3
Particle Shape/顆粒形態 Fine powder/細小粉末
Color/顏色 Green/綠色
Bulk density(LPD)/堆積密度 1.15-1.25 g/cm3
Crystal shape/晶型 Hexagonal/六方晶型
Melting Point/熔點 dissociated at about 2600°C/2600°C游離
Maximum service temperature/使用溫度上限 1900°C
Thermal conductivity/導熱系數 0.013 cal/cm2.sec (900°C)
Thermal expansion coefficient/熱膨脹系數 7-9 x10-6 /°C (0-1600°C)

  • Chemical Composition/化學成分:
Chemical Item/化學成分 Guarantee Value/保證值(%) Typical Value/典型值(%)
SiC/碳化硅 ≥99% 99.05
Free Si/游離硅 ≤0.2 0.10
Free C/游離碳 ≤0.1 0.05
Fe2O3/三氧化二鐵 ≤0.1 0.04
SiO2/二氧化硅 ≤0.2 0.20

  • Particle size distribution/粒度分布 (By Laser Analyzer LS609/激光粒度分析儀LS609) :
Size/粒徑 Guarantee Value/保證值 Typical Value/典型值
D10(um) ≥23 23.633
D50(um) 36-42 37.407
D90(um) ≤69 59.941

  • Applications/用途:
  • Grinding and polishing optical glass, piezoelectric ceramics, quartz glass, and electric wood materials. / 研磨拋光光學玻璃、壓電陶瓷、石英玻璃、電木材料。
  • Raw materials for stone grinding tools such as diamond clay grinding blocks and precision grinding oilstones. /石材磨具例如菱苦土磨塊、精磨油石的原材料。
  • Fillers for diamond water grinding discs and resin diamond grinding wheels. / 金剛石水磨片、樹脂金剛石砂輪的填料。
  • Grinding non-ferrous metal alloys and hard alloys. / 研磨有色金屬合金、硬質合金。
  • Precision polishing, lapping in silicon wafer industry. / 半導體行業硅片研磨。
  • Additives to wear resistant, anti-corrosion, and high-temperature resistant coatings such as fluorocarbon coatings and PTFE non-stick coatings. / 耐磨防腐耐高溫涂料例如氟碳涂料、特氟龍不沾涂料的耐磨填料。
  • Raw material for RBSIC ceramics. / 反應燒結碳化硅陶瓷原料。
  • SiC foam ceramics, honeycomb ceramics. / 碳化硅泡沫陶瓷、蜂窩陶瓷。

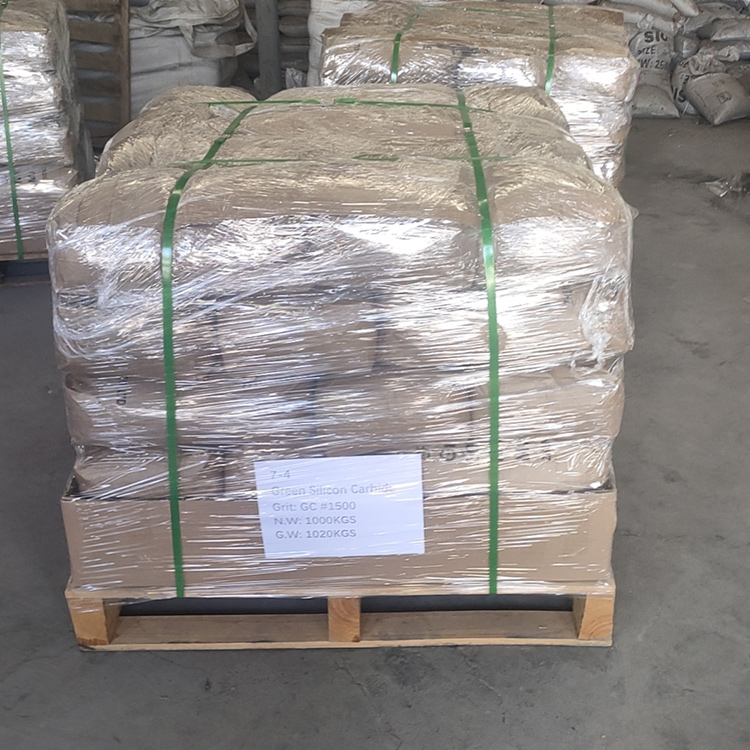

  • Package/包裝:
25公斤編織袋+噸包 / 25kgs/Bag+1Ton/Jumbo Bag
25公斤編織袋+1噸托盤/ 25kgs/Bag+1Ton/Pallet
接受紙袋等定制包裝/Customized Packages such as paper bag are available
